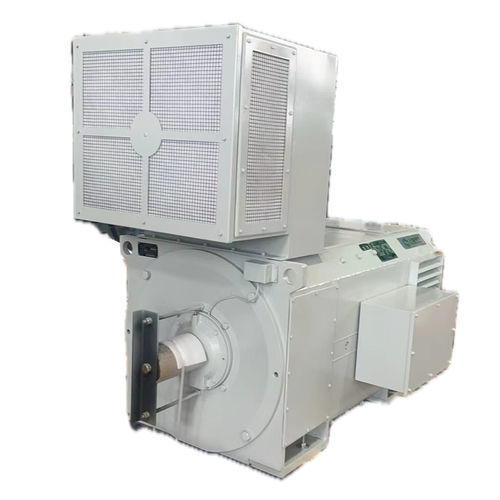

DC motor Z series

brushedIP54IP44

The Z series large DC motor is a new product developed by our company. The new design has the characteristics of large output power, low noise, small vibration, high efficiency, high reliability, and good safety performance. Rated armature voltage: 660, 750, 850, 950, 1000V excitation:Other Axis height:810 to 1000mm Protection class:IP23, IP44 and IP54 structure type:IM 1001 Cooling type:IC17 / IC37 / IC W37 A86 Stator design:Silicon steel sheet lamination Standards compliant:IEC, DIN, GB Brief description Customer benefits Large output power, large torque and adjustable speed · VPI vacuum pressure immersion period F-class insulation system can withstand short-term overload operation Low losses through high efficiency · Optimized current circulation system achieves long brush life · Heater inside the motor Protective doors on both sides of the commutator Grounding brushes on the shaft Typical application · Cold and hot rolling mills for large metallurgical industries · Large-scale mixer in rubber and plastic industry · Coal mill for mining industry · Hydropower winches · Large blower
