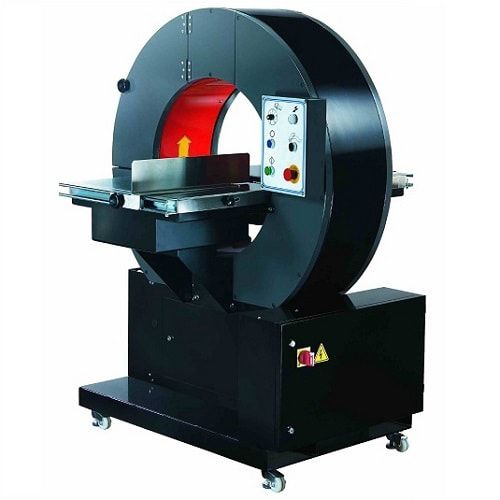

Orbital stretch wrapper S100

semi-automaticstretch film

This versatility allows our horizontal stretch wrappers to quickly and easily adapt to different product types, shapes and sizes and makes them the ideal solution for almost any application. Wrapping Station:  Ring type stretch wrapping machine.  Adjustable drive friction and wheels.  Inverter for ring speed adjusting.  Soft start and start.  Ring initial point resetable.  Packing material tension could be adjusted.  Machine works for different packing material.  Protect guardrail for safety operation.  Overlapping 10%-90% Conveyor System:  PU covered rolls conveyor for protecting the surface of the product  Automatic entrance conveyor system and outlet conveyor system.  Conveyor adjustment function.  Conveyors drive by motor with gear box.  Speed of the conveyors is adjustable by inverter. Technical parameter: Object size: Bundle OD:50-200mm Leght:>1500mm Entrance conveyer length: 1000mm with motor Outlet conveyer length: 1000mm with motor Speed: 4～15m/min Ring speed: 20-90r/min Power output: about 2.5kw Power voltage: AC 380v,60Hz Material: LLDPE stretch film/PE/HDPE
