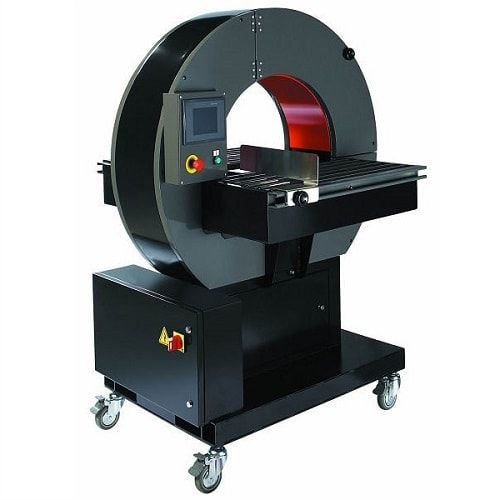

Orbital stretch wrapper S300

semi-automatictubebar

The semiatuo machine is specialized for horizontal shapes such as pipe tube or bar、Floor board, the wrapped package is well-protected & sealed & looks more tidy. The machine ring is aluminum alloy whichi is light and strong. It is able accuracy and high speed rotating for wrapping. The drive is special PU wheel with bearing than able adjusting the transmit traction any time for stable wrapping. The horizontal stretch wrapper also simplifies loading and film insertion. The roll carriage is also equipped with locking and quick release. Installation: Only power and air connection required to start the machine. Features: • Double-ring & double-rub wheel devices make working more safe stable & energetic. • PLC & HMI are adopted for each packing step • Photocell sensor is adopted for setting packing position. • Indicator alarms automatically when trouble occurs. Trouble can be shown automatically. • The turning ring is controlled by converter. Overlap rate could be adjusted according to the requirements. • Material tension could be adjusted automatically. • Separate control panel makes operation & maintenance easily. • Sensors with motor drive conveyor for automatic transport the pipe bundle. • Supportive roller and cylinder to fix the position and avoid shaking in wrapping. • The packing material automatic clamping and cutting device for efficiency packaging. Technical parameter S300: • Object size: • Length: >1000mm • OD:100-300mm • Entrance conveyer length: 1000mm • Outlet conveyer length: 1000mm • Ring speed: 100r/min • Power output: app. 1.5kw • Power voltage: AC 380v,60Hz • Material: • stretch film • Width: 120mm • OD: 250mm • ID: 50mm
