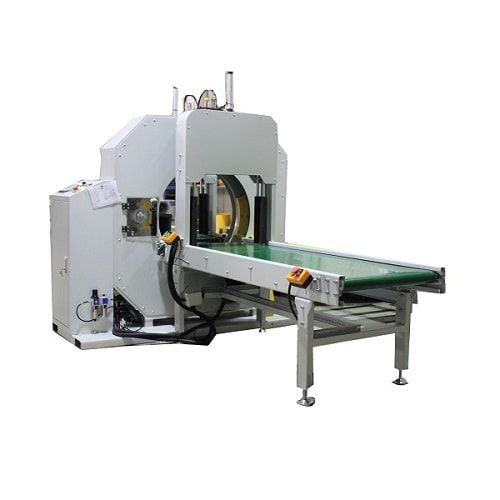

Orbital stretch wrapper E400

automaticwith conveyor

Installation: The horizontal stretch wrapper machine shall be mounted on flat and hard ground, where the ground load should be more than 1 ton/m2. Wrapping Station: • Ring and double-rub wheel devices make operation safe stable and energetic. • Friction between driving wheels and ring is adjustable. • Speed of the ring is adjustable by inverter. • Soft start and start. • Wrapping position reset. • Packing material tension could be adjusted. • Widely packing material adopted by material frame. • Protect guardrail for safety operation. • Overlapping is adjustable from 10%-90% Conveyor: • Conveyor with soft connecting for protecting the surface of the product • Automatic entrance conveyor system and outlet conveyor system. • Conveyor adjustment function. • Conveyors drive by motor with gear box. • Speed of the conveyors is adjustable by inverter. PLC control system: • PLC and program makes wrapping machine able to do automatic wrapping according your packing goal. • Photocell sensor is adopted for setting packing position. • Indicator alarms automatically when trouble occurs. Trouble can be shown automatically. • Separate control panel makes operation & maintenance easily. • Interface operation. Automatic cutter and feeder(mechanical hand): • Unmanned operation. • Automatic material feeding system. • Automatic material cutting. Technical parameter: • Bundle OD: 100-400mm • Bundle length: >1200mm • Weight:15-100kg • In feeding conveyor length: 2000mm with motor • Out feeding conveyor length: 2000mm with motor • Speed: 6～12m/min • Ring speed: 20-90r/min • Wrapping speed:5-25m/min • Power output: about 2.5kw • Power voltage: 380v, 3PH. 60Hz
