Orbital stretch wrapper E500

automaticstretch filmwith conveyor

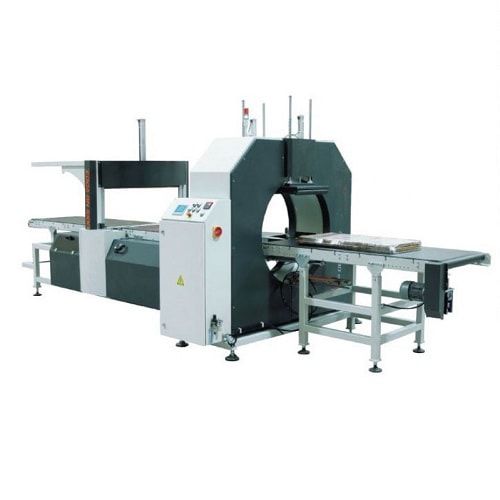

This is a orbital horizontal stretch wrapper machine with bubble film covering device and film sealer for packing the long shape package with full covered wrapping.The control panel installed with HMI for easy inputing and setting the parameter to control the packing speed. Automatic sealer for seal the PE, HDPE film also.This picture is orbital wrapping machine for IKEA for wooden board wrapping. Installation: The orbital stretch wrapping machine shall be mounted on flat & hard ground, where the ground load should be more than 1 ton/m2. Basic feature of the main wrapping station • Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping • Four-ring & double-PU wheel devices make working more safe stable & energetic. • The higher level main board with stronger structure and frame for wrapping. • Friction between driving wheels and ring is adjustable. • Speed of the ring is adjustable by inverters. • Soft start and start and ring jog. • Sensor for wrapping position automatic reset. • Packing material tension could be adjusted. • Widely packing material adopted by material frame. • Protection shield covering the machinery structure and moving parts of safe operation. • Overlapping is adjustable from 10%-90% • Wrapping start and stop points are adjustable. • The relative figure adjustable on touch screen. Conveyors • Soft conveyor for products soft touching. • Automatic infeed and outfeed conveyor. • Conveyors driven by motor with gear box ,length can be an option per need. • Speed of the conveyor is adjustable by inverters. • Sensor detects the object for infeeding, wrapping, outfeeding action.
