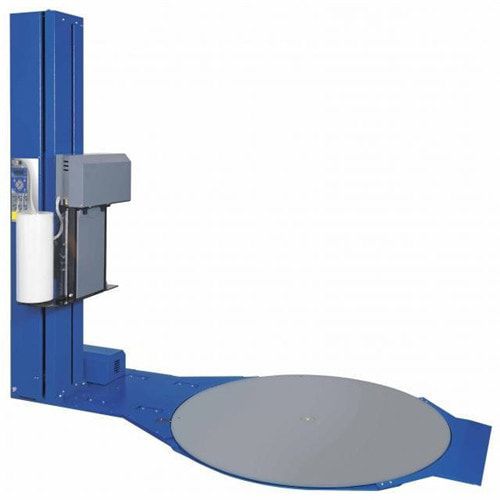

Turntable wrapping machine A300
semi-automaticpalletstretch film

turntable wrapping machine
turntable wrapping machine
turntable wrapping machine
Add to favorites
Compare this product


Characteristics

Type
turntable
Operating mode
semi-automatic
Product applications
pallet
Other characteristics
stretch film
Height

Max.: 1,800 mm
(71 in)

Min.: 500 mm
(20 in)

Width

Max.: 1,500 mm
(59 in)

Min.: 500 mm
(20 in)

Length

Max.: 1,500 mm
(59 in)

Min.: 500 mm
(20 in)

Rotational speed

13 rpm
(82 rad.min-1)

Description

Description Manufactured by Fhope in China, the Fhope series Pallet stretch wrap machine range stands light years ahead of any other and includes an uncompromising grandeur of excellence brought together by the distinction of European engineering and state of the art technology and electronics.The Fhope pre-stretch system is light years ahead all other brands. As a result of its unique development,the film performance far exceeds industry standards with the ability to reduce film usage by over 50%.Fhope are very proud of the revolutionising developments which have resulted in world best recognition,far superior to other supplier. Performance Features • More Convenient • Packaging method: Bottom, middle and top wrapping layer can be set from 0-99 winds. • Turntable speed can be adjusted by inverter. • Packing counters: Independent top and bottom. • Film carriage speed can be freely adjusted by inverter. • Wrapping settings: re-wrap function, overwrap and overlap adjustment • Portable forklift from front and rear. • Available option parts: Top press, pre-stretch and access ramp • Customized solution base on A300: tall tower and big turntable size Safer • Emergency stop button: Red mushroom head. • Turntable plate height: 10mm is much more rigid to anti-deformation when load heavy goods. • Advanced lock door control on film Loading carriage for guaranteed locking. • Film loading Safety Shut-off switch shuts down in automatic condition power when stretch film is loaded More Effective • Wrapping speed up to 30-40 pallets per hour • Free from a large amount of manual operation More Reliable • Reinforced tower and turntable structure
