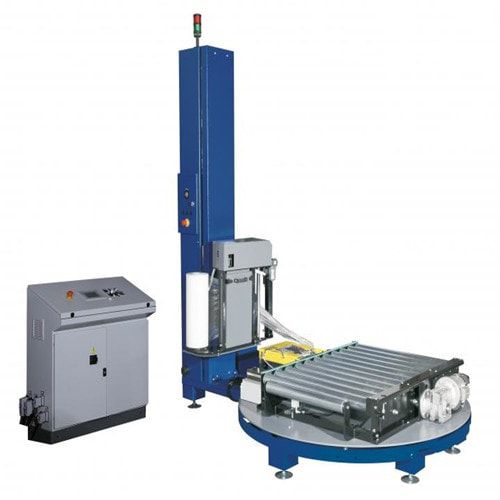

Turntable wrapping machine B100 series

automaticpalletstretch film

Application Automatic pallet wrapping machine B100 series is used for automatically pallet packing with automatic pallet loading and position conveyor. It is connected to conveying line, which can dramatically enhance the wrapping efficiency.Meanwhile, it is equipped with a upgraded motorized pre-stretch system that allows a large saving of film while wrapping.It is fully automatic without manual interference except for changing consumable itemssuch as strapping, packing material and etc. Technological process The pallet will be placed on the infeed conveyor by forklift. Then motorized conveyor will transfer the pallet to its packing position. And then auto turntable pallet packing machine starts to wrap the strapped pallet with stretch film (LLDPE) automatically. Finally the pallet will moved out the outfeed conveyor by forklift. One packaging process is fully done. Note: Infeeding&out feeding conveyor is option. Performance • Working mode: Auto • Loads per hour: Min. 24 • Maximum load weight: 1800kg • Wrapping method: Bottom, middle and top wrapping layer can be set from 0-99 winds • Construction: Heavy duty, welded Controls • Controller: PLC system • Tension control: Pre-stretch controller • Operator interface: Separate buttons and HMI interface • Wrap settings: Re-wrap function, overwrap and overlap adjustment • Wrap counters: Independent top and bottom • Cycle counters: Total cycle counter and resettable Counter • Emergency stop: Red mushroom head • Electrical disconnect: Lockable • Electrical enclosure: European approved Film Delivery System • Film (LLDPE): Thickness 0.025mm, length 500m-1500m, weight: 15kg • Film capacity: 500mm width x 76mm dia.
