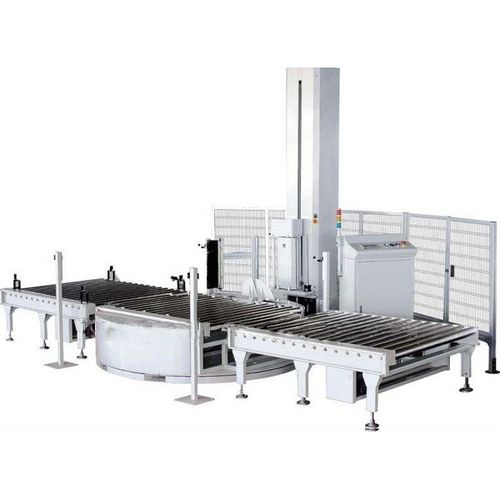

Horizontal wrapping machine B200

turntableautomaticpallet

Automatic pallet stretch wrapping machine B200 series is used to wrap stretch film around a loaded pallet. It can meet the highest demands regarding capacity, adaptability from customer to customer and is easy to maintain and economical. Film provides extra support while the products are being transported & storaged to protect them from being damaged. Additionally , wrapped loads can easily be separated and identified. Automatic stretch pallet wrapper is widely used in chemical industry, electronic industry building field, food industry, etc. Control • OMRON PLC with push button interface. • Measure packing height automatically by sensor. • The film device can move up and down. • Wrapping break is adjustable. • Wrapping layers and zones are adjustable. • Load and unload flim easily. • The turntable speed is availble in 3-12rpm. • All the speeds are driven by motors. • Load film during 10sec. • Flim device can be controled manually and automatically. • Turntable has a jog button. Turntable • 2000KG weight capacity • Turntable, loading and unloading conveyor lines are in a horizontal line. Easy and convenient. • Soft start and soft stop Film carriage • Pre-stretch system can be up to 200% of film consumption. (Prestretch ratio can be specially made according to your requirements.) • The door of film carriage is open or not as flimarriage door opens for effortless roll change and thread film. • Film delivery is driven by separate DC Drive Motor • The bar of flim carriage moves up and dwon. • The turntable has double-chain motor make coveyor stable and safe. Option a. Ramp b. Pneumatic top plate
