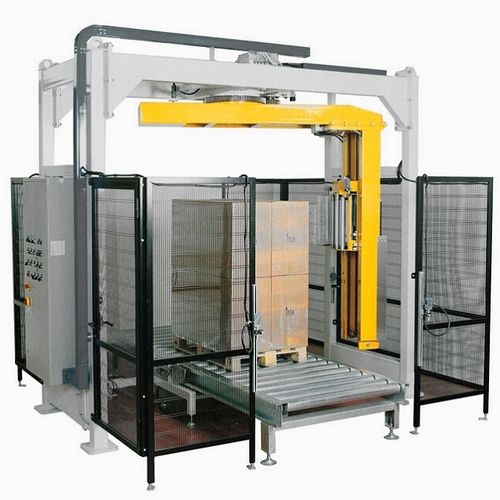

Rotary arm wrapping machine RAS100

automaticpalletstretch film

The conveyor moves the pallet below the rotary arm. The device for applying top cover moves downward to the level of pallet, unreels and cuts the top cover material. The film is applied and the device returns to its initial position. The stabilizer plate descends until it is in contact with the load. The fastening of the film is automatically carried out by an arm. The rotary arm starts to apply the plastic film around the pallet. The reel-holder carriage moves regularly upwards so that the pallet is spirally wrapped. Features The automatic rotary arm pallet wrapping machine is controlled by PLC system, including main engine, rotate arm, film carriage, conveyor, guard rails and control panel.The rotate arm can work around the loads by working operation, easy to load and unload. When the load is put on the conveyor, it will be moved automatically to the wrapping station, and then the arm begins to rotary automatically. After wrapping, the load is moving to the next station. Technical Parameters Working mode: automatic Loads per hour: 10-30pallets Rotation speed: 10-14 rpm speed variable through inverter. Maximum load size: OD:1400MM x Width: 1400mm Film (LLDPE): Thickness 0.25mm, width 500mm, weight 15kg Wrapping method: Bottom, middle and top wrapping layer can be set from 0-99 winds Film Carriage System Film capacity: 500mm width x 76mm dia. Force -control: Variable by separate motor Multiple protection device can ensure the operator safety. (such as the white loop in the picture is anti-collision protective device.) Mechanical hand Pneumatic film cut and wipe system Film clamper mode: scissors like gripper bars Automatic material clamping for next wrapping.
