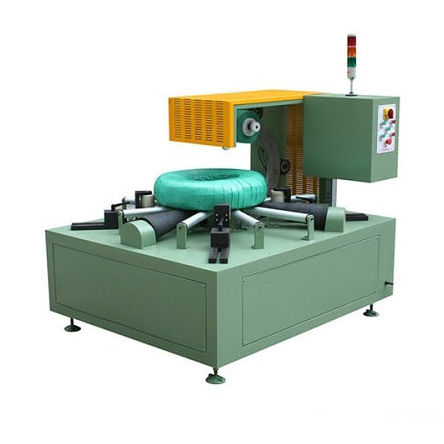

Horizontal wrapping machine FPCA-100

automaticcoilfor hoses

Main parameter No. of packing material LLDPE/PE/PVC/: OD:80-100mm ID:50mm Width:70mm ID of Coil Φ200～Φ300mm Outer diameter of disc Φ300-Φ400mm Width 100～200mm Weight 8-50kg Main wrapping speed(high/low) 18-35sec/pcs Max speed of ring 100r/Minute Power supply(high/low) 380V 60Hz 3P Features: Control:  PLC&HMI for automatic material calculates function(OPTIONAL).  Special design for easy loading and unloading by manual easily.  Ring soft stop, start and reset.  Manual and automatic working mode for easy operation.  Time relay for automatic stop.  The converters for adjusting the speed of the ring and rollers  Overlapping rate of the packing material according to requirement.  Foot Switch jog  overcurrent protection for driving motor  Supportive rollers is easy adjustable for avoiding coil shaking in wrapping Operation:  Horizontal type coil packaging.  Easy packing material roll loading and unloading.  Adjusted for different OD of the coil for the best packaging  Special design for easy loading and unloading by manual easily.  Packaging tension is adjustable by special mechanical device.  Guardrails, soft starts and stop for safety operation.  Widely packing material applicable.  Consistent tension device to make machine working for small to big coil packaging.  Logo circle tapping (optional)
