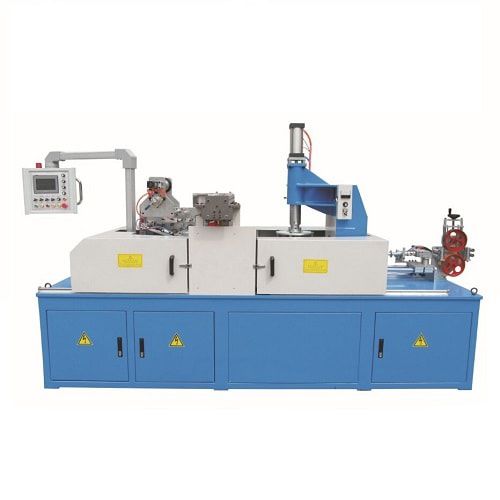

Automatic strapping machine FPCL-W500

for wire coils

Machine details: 1: meter counter: with up and down wheel, precise encoder count length to centimeter.up and down wheel are made with aluminum alloy material, up wheel is sprayed with ceramic and hardness process, down wheel is covered with strong glue to prevent hurting wire,install single direction bearing to prevent wire inversion 2. coiling head: air pressure promoter automatically control take-up and pay-off and automatically open and close when winding vertical, automatically stop take-up when reach pre-set length, then coiling head opening 3 .traverse: Computer control traverse, servo motor drives, 4.portal cutter: Portal cutter,automatic cutting wire when wire reel reach pre-set length. Cutter is made with special steel material and vacuum heating processed, higher hardness and longer lifetime 5. control system:human-computer interface, touch screen operation.central computer system can control winding speed , wire reel length ,alarm , speed adjust, indicator , emergent stop and reset etc function.can change wire reel length , wire diameter , wire speed during machine running. Features: n Eye through type strapping. n Program control for automatic strapping. n Automatic positioning for different coils. n Tension adjustable for different wire coil. n Connects with coiling machine. n Taper roll with lifting and downing function. n 3-6 places strapping. Technical date: Strap width :8mm Strap thickness :0,8 mm Type of strap : Polyester Strap quality :Smooth /High quality polyester strap Type of joint : By friction - vibration
