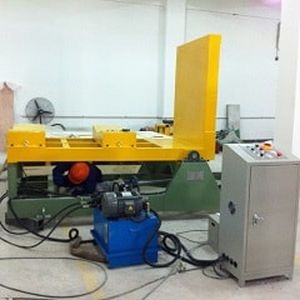

Hydraulic tilter

automaticelectro-hydraulicelectro-manual

This Hydraulic coil upender machine is a custom designed flat tilter with a capacity of upending 40T mold. The upend process requires raising one half of the upender 90° and then loading the tool against the raised half. Next rotates both halves simultaneously which rotates or 'upends' the tool 90° to allow for servicing. 1． Name, model, quantity Equipment name：Hydraulic coil upender Quantity: 1set 2．Basic parameters of the machine The basic parameters are as follows, but not binding to this: 2.1 Specification: Max.Loading 10T Turning Angle: 90o x2 Customized solution for heavy loading is available. Basic characteristics: 1) Ground designing for easy handling. 2) Heavy designed structure. 3) Hydraulic driving. 4) Speed of turning is adjustable. 5) Soft start and stop 6) Mechanical and electric stop block for safety operation. 7) Control panel or Remote operation 8) Automatic stop 9) Smooth, accurate, vibration-free motion 10) Two way back pressure technical
