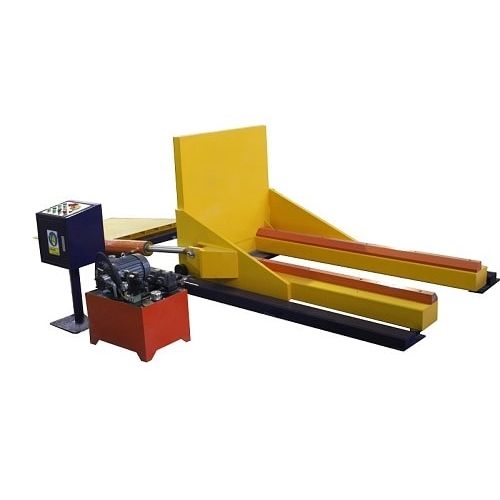

Hydraulic tilter FZ-H02

Model: FZ-H02 Line voltage: 220V, 60Hz, 3phases Power consumption: 2.0kW Load object: plastic film roll Load length: Max. 2400mm Load outer diameter (OD): 1000mm Load weight: 1600kg Tilting angle: 90° Capacity: 2000kg Inverter: Delta Noise: <78db FEATURES • Heavy designed structure, firm and durable • Speed of turning is adjustable • Soft start and stop • Independent electrical panel control for easy and safe operation • Automatic stop • Smooth, accurate, vibration-free motion • Two way back pressure technical • Tilter driven by hydraulic cylinder ENVIRONMENT • Effective working hour per year:7200h • Ambient air temperature from -50℃ to +40℃ • Dust content: max 3mg/cu m
