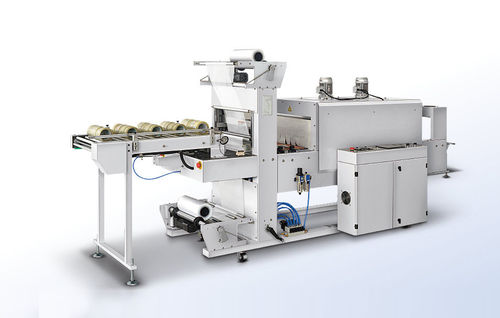

Automatic shrink wrapping machine SK-075C

for cylindrical productsfor paper rollstape

Features: 1.SK-075C is a automatic machine which has heat blade for sealing and shrink tunnel for shrinking products, the machine is used for products packaging such as tapes, paper rolls and cylindrical products. 2. This machine can be connected with tape production line, collate and pack tapes in tower or in flat automatically. 3. Sealer made of alloyed material, coated with anti-stick telfon supported by four columns is very durable and repliable, makes a good sealing and reduces power consumption. 4. Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor. 5. The compact machine structure and super high efficiency can save more space for users. Model: SK-075C Sealing type: sleeve sealing Power supply: 380V/50-60Hz/3phase Max product size: 380(L) x 200(W) x 200(H)mm Packing capacity: 8-18 packs per minute Film type: polyethylene (PE) film Max film size: 500(width) x 280mm(outer diameter) Power consumption: max. 12kw Tunnel oven size: entrance 1250(L) x 520(w) x 220(H)mm Tunnel conveyor speed: variable, 40m/min Tunnel conveyor: chains with silicon coated rods Working height: 850-900mm Air pressure: ≤0.5MPa(5 bar) Sealing system: Special durable alloyed sealing knife with anti-stick Teflon coats Operating panel: Siemens colorful touch screen, PLC, omron temperature controller Machine material: carbon steel Weight: 700kg
