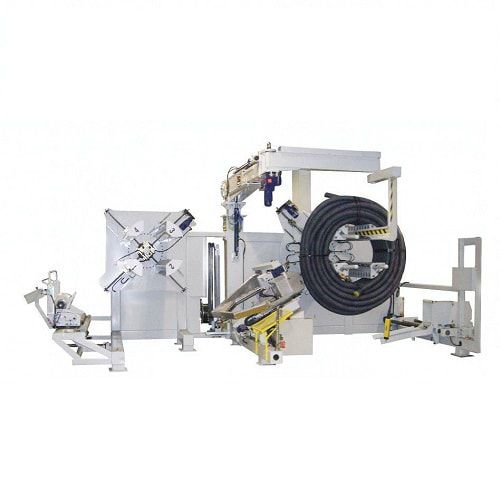

Hose winding and packing machine FCL-S1600

This is automatic coiler and strapping machine specialized for vertical coiling and strapping, such as pipe coil, hose coil, etc. After coiling and strapping, pipe coils are well-shaped. The machine saves labor force and improves work efficiency that plays a key role in your production procedure and is popular in modern packaging industry. The automatic pipe coiling and strapping machine all conform to CE guidelines and have been designed using latest technology and design criteria for industrial use. We provide you packing solutions for the pipe industry. Specifications Standard configuration listed below. Please contact our sales representative for other configuration. The machine shall be mounted on flat and hard ground where it can load more than 1 ton/m2. Packing process： A. Pipe from extruder/spool through the tensioner and counter B. Automatic feeding the pipe to coiling station. C. Pipe head clamped and turning for coiling D. Automatic layer making and coil making. E. Automatic cutting the pipe while pipe length reach to the setting. F. Automatic film feeding and wrapping. G. Wrapping finished & Cuting the film H. Pushing out the wrapped coil. Basic Features of Pipe coiling machine • Online connects to extruder. • Strong driving for big and hard pipes coiling. • Coiler arm can be adjusted per ID and width • PLC and HMI control system for automatic operation. • Two working modes: Auto and manual. • Tension control for pipe infeeding for tight coiling. • Parameters can be set on PLC program. • Calculate pipe length and cut the pipe automatically. • Automatically winding system. • Automatic alarm system when fault occurs.
