Automatic coiler

tube

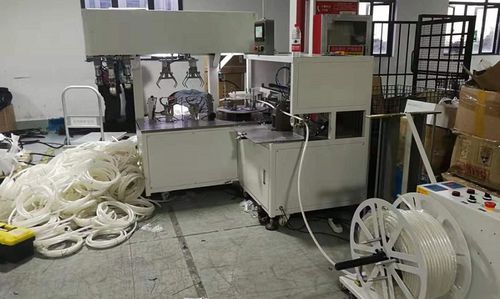

The automatic tubecoiling&strapping machine forsmall ID and short tube. It is able counting the lengths of tube by encoder, automatic cutting, coil making, strapping. All conform to CE guidelines and have been designed using the latest technology and design criteria for industrial use. Features: 1. PLC & HMI control program are used for automatic operation. 2. Parameters can be set on the control program with English. 3.Coiling ID adjustable from 130-170mm. 4. Tube cutting length can be adjusted assetting in the HMI. 5. Strapping points: 2 binding at one time. 6. Automatic error detection function, it will alarm when trouble occurs. 7. Detecting the tube position automatic by sensor. 8.Two working position for coiling&strapping step by step. 9. Tension control for soft pipe to avoid deforming in coiling. 10.Servo motorfor coilingand coil positioning movement. 11. Take off device with friction adjustable by magnet. 12. Automatic length calculating by encoder 13. Coiling and cutting accuracy: 3mm/10m 14. Big wire binding device for covering big and small OD-ID. 15. Technical parameter: Coil sizeID: Φ130-170mmPipe OD: 2-6mmLength:6-15.5mNote: Length can be 30m,but the coil can not over size. Air supply6barCoil feed style modeHold coil typeMeter counter1m-15.5mPower voltageAC110V,60HZAir supply0.4-6bar
