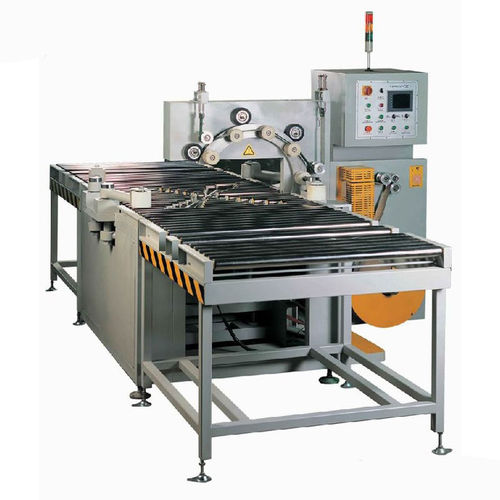

Horizontal wrapping machine FPB-400

rotary ringautomaticfor bearings

This bearing wrapping machine is designed mainly for the big size bearing and axletree packaging requirement. It’s high efficiency improves the packing capacity, saves the labor cost. The tight package saves the packaging material. High stability improves the packaging quality. Features of bearing packing machine: Control: l 1. The machine can be connected with production line for automatic bearing wrapping. l 2. PLC & HMI are adopted for automatic operation. l 3. Automatic centralized positioning for bearing packaging l 4. Sensors for checking position of the wrapping position. l 5. Automatic conveyors for loading and unloading. l 6. Manual and automatic bearing packing models are optional. l 7. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically on the interface. l 8. Soft stop & start protection. l 9. Ring reset function. l 10. Ring jog. Operation for bearing packing machine: l1. The converters adopted to adjust the overlap of the packing tape according to requirement. l 2. Speed of the ring and rollers are adjustable by converters. l 3. Simple operation by imputing OD. ID. width & corrected parameter of coiled metal. Other parameters will be set automatically. l 4. Guardrails, soft starts and stop for safety operation. l 5. It can be connected with production line for automatic bearing packing. l 6. Packaging tension is adjustable. l 7. Special breakers for the tape release device to avoid material folding. l 8. Automatic material cutting the feeding system. Bearing Packing Machine: FPB-400 Voltage (V/Hz): AC 380/50( or your requirement) Power (KW): 2.5 Bearing ID(mm): 300-900 Bearing OD(mm): 900-1400
