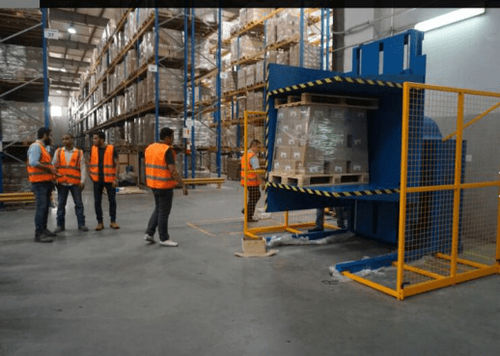

Electric turnover machine FPFZ-1

180°

180° Pallet Inverter forms a natural element in any pallet-less loading system. By inverting the product 180 degrees, you can retain your own pallets in-house and load containers in double-quick time. An ideal system for product which will be hand-balled out at its destination. Features: 1. Excellent collections. Well-known brands are adopted for main components. 2. Prevent from manual stacking of goods effectively. 3. The pressing device adjustable per different package size. 4. Strong structure and durable designing. 5. Separate electrical box for safe operation and technical testing and trouble-shooting. 6. Speed of turning is adjustable. 7. Soft start and stop,Automatic stop 8. Mechanical and electric stop block for safety operation. 9. Control panel or Remote operation 10. Smooth, accurate, vibration-free motion Model: FPFZ-1 Specifications: L1200mm x W1100-1200mm x H1200-2000mm Turnover Capacity (T):Max. 1.2T Turnover Time Approx (S): 50 Turnover Angle: 180° Turnover Body Base: Profile Welding Fixed Mode: Dead Weight Operation Mode: Wireless Remote Control Motor Power Approx (Kw): 2.2 KW Power Supply: 380v,50hz（Three phase five wire system）
