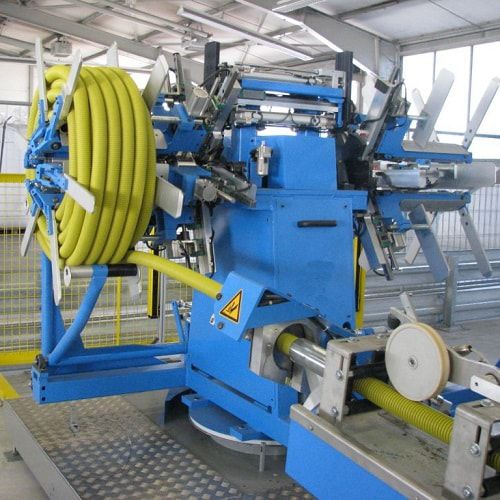

Automatic strapping machine FCL-V1000

for hosespipe

Automatic Coiler & Strapping Machine: an automatic packing line for hoses and pipes. Coiling Machine Feature: • PLC and HMI control system for automatic operation. • Two working modes: Auto and manual. • Tension control for pipe infeeding for tight coiling. • Parameters can be set on PLC program. • Calculate pipe length and cut the pipe automatically. • Automatically winding system. • Automatic alarm system when fault occurs. • Detect pipe position automatically by sensor. • Speed is adjustable by inverter. • Two wheels for continuous winding. • Adopt automatic displacer. • Coiling a pipe roll orderly and nicely. • Pneumatically discharge the pipe coil. Strapping Machine Feature: • Strap the HDPE pipe coil automatically. • Automatic alarm system when fault occurs. • Good tension control for protect the pipe surface. • Detect strapping position automatically by sensor. • Speed is adjustable by inverter. • Automatic strap the coil by3/ 4 positions. • Easy and safe operation for the operator. • Successful rate upto95%. Pipe OD: 15-45mm Coil head: 1or 2 Coil ID: 400-1000mm Coil OD(Max): 1000mm Coil Width(Max): 350mm
