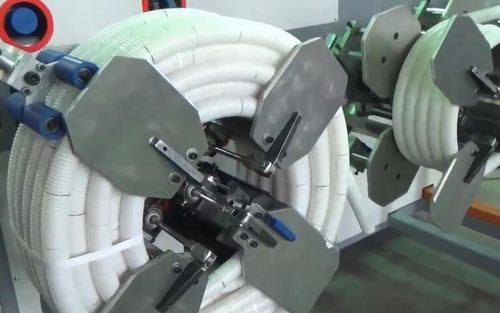

Automatic coiler FCL-V600 series

for hoses

Automatic coiler FCL-V600 is system belongs to vertical type automatic hose winding.It is an automatic line that can automatically complete a series of complete steps, from fixing the length, and then winding, cutting, strapping, winding, to the end step of the line. It takes very little space, but it can efficiently and quickly complete the tasks of automatic winding and packaging, which fully meets the high standard of packaging. Function: Automatically hose coiling machine is used to calculate of tube length, coil making and cutting.Then hold the loop and move it automatically to the next station.The figure can be set in PLC control program. The machine belt and connect terminal are automatically adjusted by safe welding.When the strap is inserted, the motor shuts off automatically. Air supply: 6bar Coil feed style mode: Hold coil type Meter counter: 1m-100m Power voltage: AC 380V, 50HZ, 3 phaseNote: The machine can be modified per different coil size. Features: 1. PLC control program. 2. The setting parameters can be used in the control program. 3. The OD of coiling is adjustable. 4. The cutting length of the tube can be adjusted. 5.Two protection devices are used to fix and move the helix. 6.Automatically detect wrong function and alarm when failure occurs. 7.Positioning pipe through sensor. 8.The compression device keeps the tube stable.
