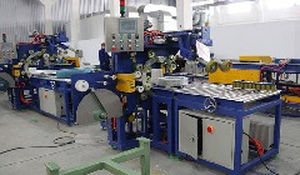

Horizontal wrapping machine

automaticfor hoseswith conveyor

Basic parameters of the machine a. Hose Wrapping Machine 1. Excellent collections. Well-known brands are adopted for main components. 2. PLC for coil packaging. 3. It is able to connect with conveyor for coil loading and unloading 4. Inverter for ring speed adjusting. 5. Packed coil move to stacking by conveyor. 6. Indicator alarms automatically when trouble occurs. 7. Supportive rollers lifting the coil from conveyor for wrapping. 8. The inverters adopted to adjust the overlap rate of wrapping tape according to the requirements. 9. Wrapping tape tension can be adjusted. 10. Ring speed adjustable by convertor. 11. Roller speed adjustable by convertor. 12. Packing tape tension can be adjusted. 13. Automatic paper/HDPE/woven… material cutting 14. Difference packing material can be choosing. 15. Soft stop and start. 16. Ring original position reset. 17. Overlapping adjustable from 10%-90% 18. Automatic mechanical hand for material clamping and feeding. 19. Wrapping method: Material as stocking in the material wheels of ring as wrapping. 20. Automatic front and back coil positioning. 21. It should start soft and stop softly 22. Rotate roll and centering roll covered with PU for products protection. 23. Working table height should be adjusted to have 880-890mm from ground 24. Working table width should be 1600mm max. 25. Control panel can be touched at operator's side i.e. cross the working table over the head
