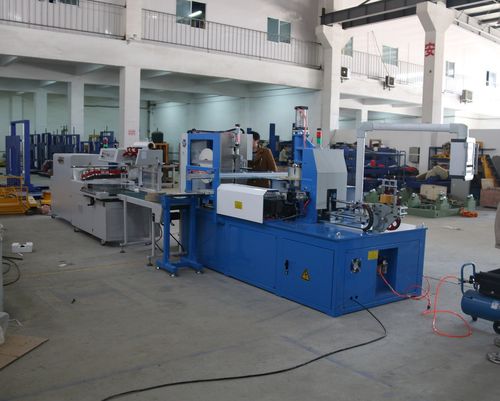

Automatic shrink wrapping machine

for cable coilswith shrink tunnel

Automatic Cable Winding and Shrinking Machine Description: Adopt advanced technology, to make packing line be full-automatic. Two different types - online / offline machine can be chosen. After coiling, the cable coils are conveyed to heat shrinking machine to finish packing. Automatic coiling machine Automatic making cable into coils, and automatic cutting. And automatic move coils into the shrinking machine. Features: 1. PLC & HMI control program are used for automatic operation. 2. Parameters can be set on the control program with English. 3. Coiling OD cab be adjustable. 4. Cable cutting length can be adjusted as setting. 5. Two protective guards to fix and move the coiled cable. 6. Automatic error detection function, it will alarm when trouble occurs. 7. Detecting the cable position automatic by sensor. 8. Pressing device making the cable coil fixed and stable. 9. Tension control for avoiding deforming in coiling. 10. Tension control are included in the packing line. 11. It is necessary to replace different coil reels according to different inner diameter. Heat shrinking machine: Fully enclosed heat shrinkable machine, L type feeding way of POF / PE film. With high quality sealing effect, and pretty appearance. It can be connected to after the strapping machine for further packaging. Technical parameter: Sealing mode: full closed Power voltage: 380v/50Hz/3phase Sealing height: ≦200mm Sealing width: ≦500mm Product size: width+height ≦700mm Product length: infinite Packing capacity: depends on product length Film type: POF / PE Max film size: 580mm x 280mm Power consumption: 10.5KW Tunnel oven size: depends on product length Tunnel conveyor speed: variable
