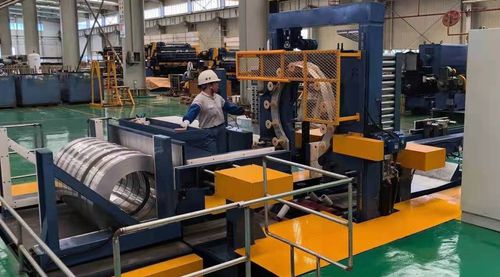

Coil packaging line FHOPE-AUTO2000

automatic

The vertical steel slitting coil packaging line is an economical slitting coil handling and packing system. That is a solution for high level automatic in Coil feeding, packing and coil stacking. The slitting coil would be loading by crane on the coil trolley. After palletizing, the coils on the stack turnover device would moving to the out-feeding conveyor. By this way the main packaging process of the slitting coils can be automatic handling and packing by machine. By packing line, the slitting center is able inproves the coil opeation speed and save the labor cost by Min.space. PACKING LINE INCLUDES: coil trolley>>feeding channel>>vertical steel coil packaging machine>>out-feding channel>>oading stacker upedner>>storage conveyor>>system control cabinet. Coils trolley The coil trolley is for loading & separating individual coils one by one and put them into the coil packaging machine. ✧ The station Includes trolley, coil position adjustment, track and control sensor, etc. ✧ T be used for storing the slitting coil. ✧ The motor drives the trolley forward and backward, which is stable and easy feeding the coil into the packaging station. ✧ Coils with different widths can be roll into the channel by gravity from the trolley. ✧ Coil surface and operation safety are protected by multiple restrictions. Feeding-in passway It is a channel connecting the coil feeding trolley and the vertical roll packaging machine, which can help the coil entering the vertical coil roller station. In order to support the coil in rolling into coil rolling position, the supportive guides would be automatically adjustable according to the coil width.
