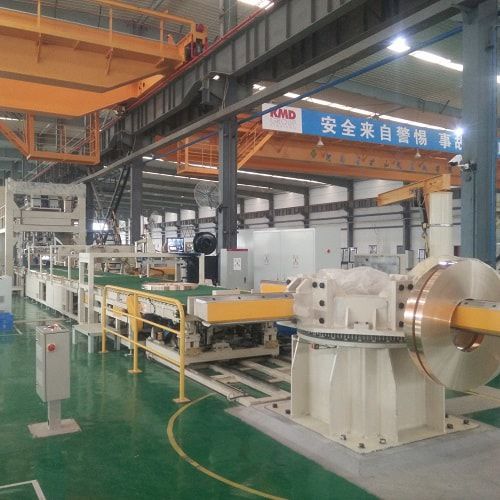

Steel coil packaging line

for copper coilsautomatic

This steel coil packaging line for stainless steel, cooper coil, aluminum coil. That is composed of turnstile, coil separator, weighing device, strapping machine, stacking system, conveyor line and etc. It can be used for separating, strapping, stacking and weighing of copper coils of width 10mm～300mm. This machinery is controlled by a supervisory control system, and each part can be operated separately by manual. The machinery equips with hydraulic press station itself, while the power supply, air supply supplied by the user. Technical parameter of the coil packing line: Object weight: 100-3000kg Package width: 30-300mm Package OD: 600-1500mm Package ID:508mm Roller Speed:2-4m/min Wrapping speed:20-60sec/pcs Rotating speed: 20-100r/min Overlap scope: 20%-80% Power output: app. 3.6kw Power voltage: 380v/60Hz Air supply:4-6kgf/m2 Packing material: PP belt ID:50mm OD:100-500mm Width:100mm
