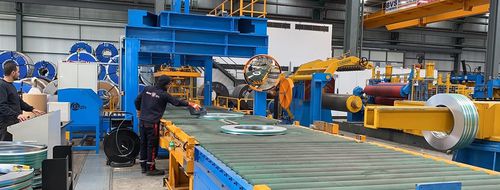

Automatic packing machine

coil

Coil move to the in-feeding station, automatic centering and raising the coil Automatic coil pick up and lifting Automatic palletizing the coil one by one on the pallet. Pallet out-feeding.   A. Centering&Lifting table 1) Roller conveyor for moving the coil 2) Centering device for coil center with is able error correction for stacking 3) The coil will be raising for easy pick up by forks. 4) Automatic coil positioning.   B. Stacking machine 1) Strong and durable structure designing. 2) Manually feeding timber between the coil stacking. 3) Strong forks for picking up the coil 4) Mobile lifting coil picking, smoothandfast operation. 5) Mainly composed of a Gantry type mobile mechanism. 6) Gantry type shifting mechanism, ensure smooth movement of the steel coils. 7) Inside coil protector. 8) There is need timber block between thecoils. 9) Four supportive arms for protecting the coil in moving. 10) Accurate position for coil taking and stacking.   C. Conveyor station . It is a conveyor for out feeding the palletized coils ² Max stacking height:1000mm (pallet height is included) ² Max stacking weight:6000kg ² Stacking platform:Conveyor ² Max stacking weight of single coil:3000kg
