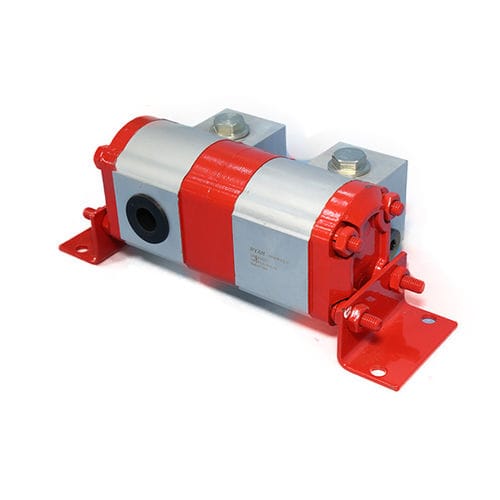

Gear flow divider 2FDF

multi-channelhydraulic

Flow Dividers Flow divider are specially designed to divide the pump flow into several smaller flows and distribute them to different actuators. They are also used as aspressure intensifiers. As a substitute product for flow divider valve, flow divider feature a high division accuracy within 1.5%-3%, which is 4%-5% in a conventional flow divider valve, and it is not sensitive to oil viscosity. Choosing the right flow divider will help reduce the installation and operational costs of the hydraulic system and will conveniently realize multiple circulations, as well as help extend the pump service life. GRH’s flow divider comes in a displacement of 0.75cc to 70cc per section and can incorporate as many as 16 sections. Based on different user applications, an RGH flow divider will install a differential pressure valve, relief valve, and anti-cavitation valve with a maximum pressure of 25MPa. The internal structure design ensures a higher division accuracy, starting performance and longer service life. Precise part manufacturing guarantees a higher mechanical efficiency and rigorous process control ensures reliable product quality. Custom range Speed range: 500 r/min - 2000n/min Working pressure: < 11bar-19bar; Max. output pressure: < 250bar; Displacement: (2cc/r-80cc/r) Synchronization accuracy: < ±2% Sectional design allows for the following functions as you require: Equal-flow distribution Synchronous multiple flows Synchronous or independent multiple flows by combining switching valve.
