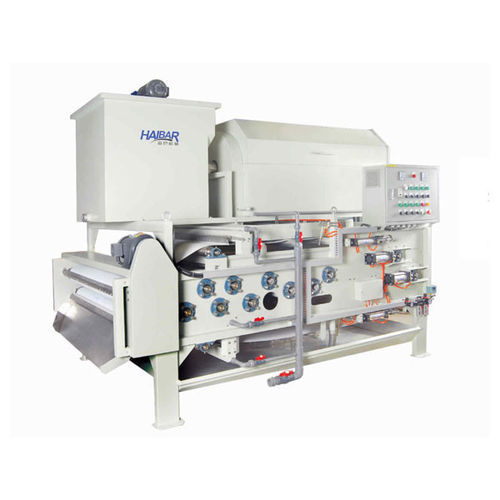

Belt filter press HTB series
rotaryfor sludge treatment

Add to favorites

Compare this product

Characteristics

Type: belt
Operating mode: rotary
Other characteristics: for sludge treatment
Machine length: 2,600 mm, 2,800 mm, 3,200 mm, 3,450 mm, 3,550 mm
(102 in, 110 in, 126 in, 136 in, 140 in)
Machine width: 1,050 mm, 1,300 mm, 1,550 mm, 1,800 mm, 2,100 mm
(41 in, 51 in, 61 in, 71 in, 83 in)
Machine weight: 950 kg, 1,120 kg, 1,360 kg, 1,620 kg, 2,050 kg
(2,094 lb, 2,469 lb, 2,998 lb, 3,571 lb, 4,519 lb)

Description

Widely used in a variety of industries, the HTB belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment. HAIBAR's belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life. An HTB series belt filter press is a standard filter press featuring rotary drum thickening technology. Features Integrated rotary drum thickening and dewatering treatment processes Wide range of normal applications The best performance is found when the inlet consistency is 1.5-2.5%. Installation is easy due to the compact structure and normal sizes. Automatic, continuous, simple, stable and safe operation Operation is environmentally friendly due to the low energy consumption and low noise levels. Easy maintenance ensures the longevity of operation. The patented flocculation system reduces the polymer consumption. 7 to 9 segmented press rollers support different treatment capacities with the best treatment effect. The pneumatic adjustable tension achieves an ideal effect in compliance with treatment processes. A galvanized steel rack can be customized when the belt width reaches more than 1500mm.
