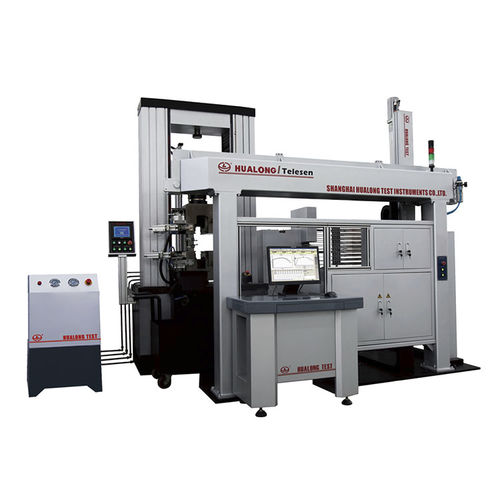

Universal testing machine HLE-A series

tensiletension/compressioncomputer-controlled

HLE-200/300/500/600-A microcomputer controlled automatic tensile testing machine consists of electronic universal testing machine, double-sided push-pull hydraulic automatic stretching fixture, flat push clamp servo oil source, digital longitudinal automatic extensometer, and extensometer’s program-controlled automatic advance and retreatdevice, front gantry type three-dimensional automatic loading specimen main robot device, six-side 60-station servo control rotary specimen rack device, specimen automatic centering finishing device, specimen automatic measuring device, follow-up automatic unloading Double robot device, automatic specimen sorting device, piano main console, digital full-closed multi-channel controller, computer and software system, measurement and control system, PLC manual control box, gas island control system, compressed air boost The system consists of a voltage regulation system, an electric drive system, safety protection and automatic shutdown alarm. Testing level 0.5 Class Driving way Servo control, electric servo, medium control gas island Operation type Automatic / manual stretching atroom temperature Max. distance between tensile clamp ≥550 mm Effective test width ≥620mm Test speed 0.001-200mm/min stepless setting Speed accuracy ±0.5% Speed control mode displacement, load, stress, strain can be arbitrarily selected and switched within the stretching phase. Power supply Three-phase 10kW
