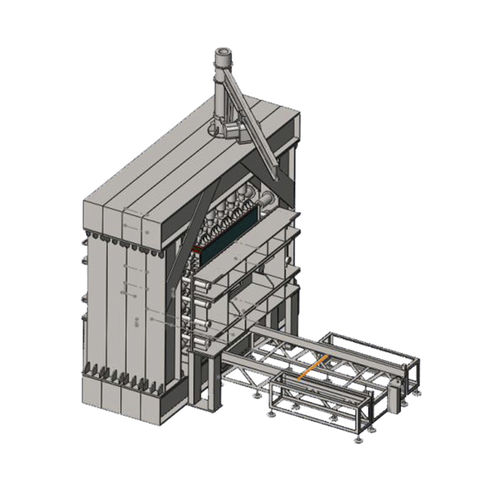

Movement simulator platform

payload

-Apply the required load or displacement to the model placed in the center of the frame through three sets of motions and their different combinations -Four combined main frame -Three-layer combined sub-rack -External molding method, making models of different thicknesses and complex structures -Mobile car body transport model -Equipped with a cantilever crane to meet the needs of hoisting and transportation in the whole area -Grating micro multi-point displacement acquisition and analysis system and static resistance strain test system -Design and manufacturing reference standard: GB/T2611 "General Technical Requirements for Testing Machines" Model size 2400×2400×2000(/1500/1000/500) 1500×1500×2000(/1500/1000/500) Test force ±3000kN (The amplitude fluctuation of dynamic force does not exceed ±1%FS) Test pressure Adjustable within 0.04～2.0(8) MPa, Load fluctuation is less than 5% Adjustable within 0.02 ~ 1.0mpa, load fluctuation is less than 5% X1/X2 axis (horizontal) load 10000kN/10000kN Y axis (vertical) load 10000kN Z1/Z2 Axis (Axial) load 6000kN/600kN X1、X2、Y direction single cylinder force 500kn X1、X2、Y direction cylinder no. 60 Z1、Z2 direction single cylinder force 630kN Z1、Z2 direction cylinder no. 16 Control channel no. 14
