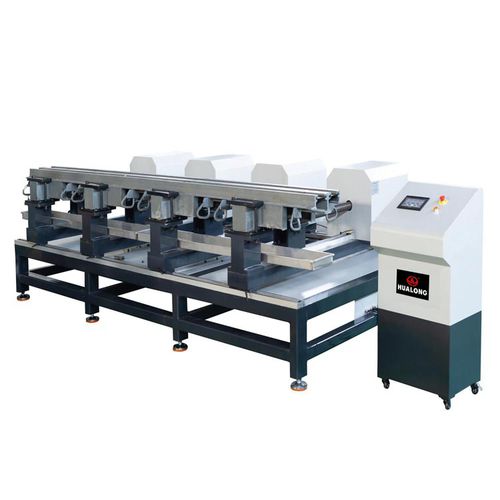

Performance testing machine HL-SSF100/4

automaticmaterialindustrial

The test device is suitable for the bridge expansion joint (assembly tolerance) test requirements and waterproof performance test requirements of the length under 4000mm(including 4000mm). Using a 80*80 square steel welding builds a (length * width * height) 4000mm*2200mm*400mm support platform, the platform is equipped with adjustable feet underneath, and a 25mm thick steel plate above, 2200mm wide and 4000mm long. • Main Specifications : Index parameter • Maximum load : 100kN • Force measurement range : 20kN-100kN(2%-100%E.S) • grade : 1% • Effective telescopic distance of slider : 0-160mm • Test length : 4000mm • Loading method : Servo electric loading • Displacement rate adjustment range : 0.01 ~100mm/min • Loading device : 4 groups • The parallelism, perpendicularity of the platform and the flatness error of the platform : ±1mm • Special fixture : Customized according to the cross-sectional structure of the expansion joint device • Test space adjustment mechanism : AC servo motor, low noise lifting screw drive • Power supply power : 2kW, 220V, 50Hz • Equipment dimensions (approximately) : 3600*2210*1000 • Equipment weight (approximately) : 2000Kg
