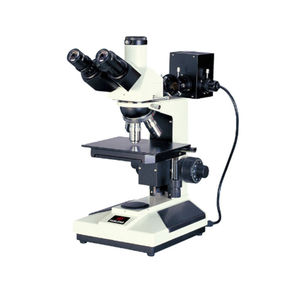

Metallographic microscope HLM-41X

for analysisinvertedbenchtop

-Total magnification: 50 -500X -Optical system：Infinite aberration correction optical system（CSIS），better image quality, higher resolution, more comfortable observation; -Objective：Infinite and long working distance professional metallographic objective 50X and 100X objective are the chromatic aberration, the resolution of the image is greatly improved. -Eyepiece: high eye point, ultra-wide visual field eyepiece, PL10x/22mm, providing wider and flatter observation space and various kinds of micrometer for measurement； -Watch cylinder: hinged ternary, depending on the degree of the adjustable, 45 ° inclined, photographic camera, can be the observed image collection and preservation, configuration, computer and professional software to realize image analysis; -Focusing mechanism: low hand rough fine tuning coaxial focusing mechanism, with coarse adjustment and elastic adjustment device, coarse adjustment of 38mm per revolution and fine tuning precision of 0.002mm; -Lighting system: reflection-type cora illuminator with variable diaphragm and central adjustable diaphragm in the field of view, adaptive 90v-240v wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen bulb; -Carrier platform: it can be equipped with coaxial low-hand adjustment moving ruler and extension plate of carrier platform to expand application space and meet different needs of customers.
