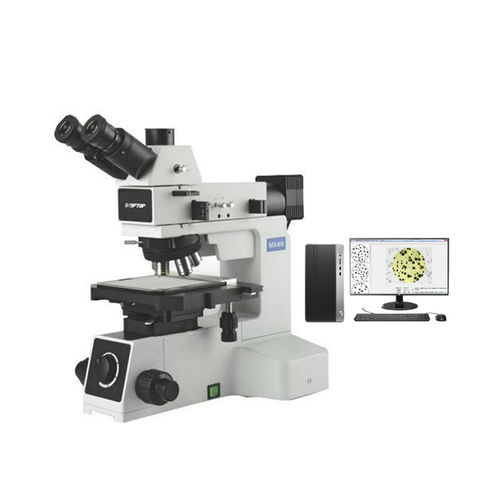

Metallographic microscope HL402-BW

laboratoryinspectioneducational

1. Application HL402-BW metallographic microscope is a trinocular upright metallographic microscope. The machine has a flexible system combination, excellent imaging performance and stable system structure. Each operating mechanism is designed according to ergonomics to minimize the operator's fatigue, and the modular design of components can freely combine system functions. The MX series is professionally used in the field of industrial inspection and metallographic analysis. 2. Specification 2.1 Optical system: Infinity Chromatic Aberration Correction Optical System 2.2 Observation tube: 30° tilt, hinged trinocular observation tube, beam splitting ratio R:T=100:0 or 50:50 2.3 Eyepiece: High eye point large field plan eyepiece PL10X/22mm 2.4 Infinity long distance plan achromatic objective: LMPL 5X /0.15 DIC WD10.8mm LMPL 10X/0.3 DIC WD12.2mm LMPL 20X/0.45 DIC WD4mm LMPL 50X/0.55 WD7.9mm 2.5 Converter: 5-Hole Tilt Converter with DIC Slot 2.6 Stage: 4" double-layer mechanical mobile platform, platform area 230X215mm, travel 105x 105mm, with glass platform, right-hand X, Y mobile handwheel, with platform interface 2.7 Transillumination system: Single high-power 5W LED, white, continuously adjustable light intensity. N.A.0.5 condenser with variable aperture diaphragm
