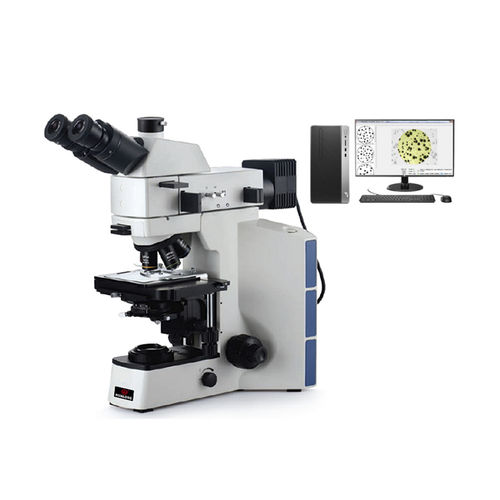

Metallographic microscope HL402-AW

laboratoryinspectioneducational

1. Features - An observation cylinder with the best comfortable Angle (30°) of the newborn bed can relieve the tension and fatigue of the user during a long working period, ensuring the best observation condition. Observe the scale on the cylinder, convenient for users to adjust the best pupil distance range. - The falling illuminator uses a cora lighting system with FOV apertures, aperture apertures, and oblique lighting devices. Preset offset mirror, offset mirror and color filter slot. - A single 5W LED warm-white lighting (3000-3300K) minimizes visual fatigue for observers, compared with similar LED lighting. - The lathes and apertures adopt a drawbar device with adjustable center, which can flexibly adjust the size of the illumination range and effectively avoid the influence of stray light on the image. 2. Specification 2.1 The optical system: Infinite chromatic aberration correction optical system 2.2 Observe the head: 30° tilt, infinite hinge three-way observation cylinder, pupil distance adjustment: 54mm~75mm, visual adjustment: ±5 diopter, two grade beam ratio R:T= 100:0 or 50:50 2.3 Eyepiece: High point large field eyepiece PL10X(Φ22mm) 2.4 Infinite flat field: Achromatic objective LMPL 5X / 0.15WD10.8mm WD12.2 LMPL 10 x / 0.30 mm LMPL WD4.00 20 x / 0.45 mm LMPL WD7.9 50 x / 0.55 mm 2.5 Objective lens converter: Internally positioned five hole converter 2.6 Focusing mechanism: Dual-purpose frame, low hand coarse micro coaxial focusing mechanism, coarse adjustment stroke 28mm, fine adjustment accuracy 0.002mm. With an adjustable tension device to prevent sliding and a random upper limit device. With platform position up
