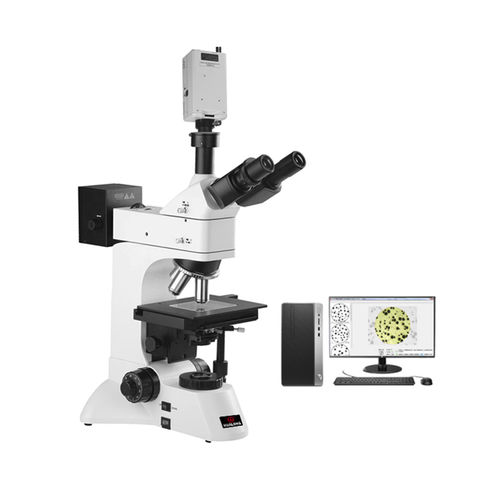

Metallographic microscope HL301-DW

laboratoryinspectioneducational

1. Application HL301-DW Computer Type Trinocular Upright Multifunction Metallographic Microscope is the elite of the optical microscope technology, advanced photovoltaic technology, sophisticated computer imaging technology together and successfully developed a high-tech product. Either manual observation metallographic images, and can be easily observed timely metallurgical image on a computer monitor, may at any time to capture the record metallurgical picture, then analyzing microstructure map, ratings, etc., you can also save or print high pixel photomicrographs. 2. Specification 2.1 Eyepiece: Large field of vision WF10X(Φ20mm) 2.2 Light and dark field objectives: Infinity long distance plan achromatic objective (no cover glass),PL 5X/0.12 Infinity long distance plan achromatic objective (no cover glass),PL L10X/0.25 Infinity long distance plan achromatic objective (no cover glass),PL L20X/0.60 (spring) Infinity long distance plan achromatic objective (no cover glass),PL L40X/0.75 (spring) 2.3 Eyepiece tube: Three eyepieces, tilt 30˚, (built-in check polarizer, can be switched) 2.4 Epi-illumination system: 12V/50W Halogen lamp, adjustable brightness Epi-illuminator with field diaphragm, aperture diaphragm and polarizer, (yellow, blue, green) filter and frosted glass 2.5 Focusing mechanism: Coaxial coarse and fine focusing,with limit locking device,micro-grid values:2μm. 2.6 Converters: Four holes (Backward ball bearing inner locating) 2.7 Stage: Double mechanical movement type (size:210mmX140mm,moving range:75mmX50mm)
