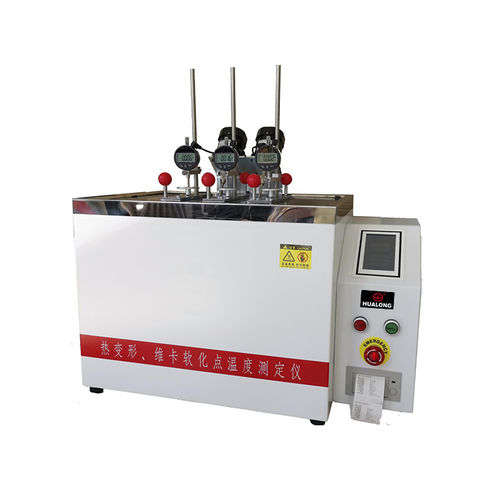

Vicat softening point Vicat testing instrument HL-HDT300T

1. Instruction: The tester used to measure plastic, rubber, nylon, cable … macro molecule material thermal deformation temperature and vi cat softening temperature, the main sensor, element with high-quality, high reliability, security, the sample frame has the function of automatic up and down, simultaneity equip power test software system function mightiness, is a suit of special software of thermal deformation temperature, vi cat softening point temperature test. 2. Specification -Model: HL-HDT300T -Structure: Table type -Temperature control range: room temperature—300°C -Temperature rise speed: (120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min) -Temperature accuracy: ±0.5 °C (50 degree heating rate) ±1 °C (120 degree heating rate) -Temperature measurement point: 1 -Maximum deformation error: 0.1°C -Deformation range: 0~10mm -Maximum deformation error: ±0.01mm -Sample support span: 64mm,100mm -Number of test racks: 3 -Range of load: 0.75N—50N -Test space: 60—120 mm (Adjustable continuously ) -Display: Touch Screen display
