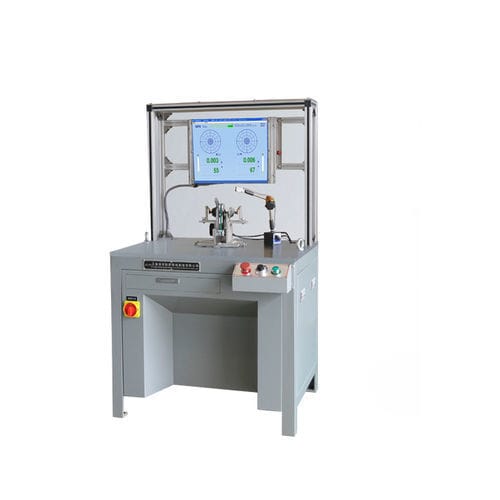

Horizontal balancing machine PRY-0.5soft bearingfor turbochargerfor turbine wheels
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Type
- soft bearing
- Applications
- for turbocharger, for turbine wheels
- Other characteristics
- high-accuracy, modular, compact, two-plane, automobile
- Rotational speed
5,000 rpm, 7,500 rpm
(31,416 rad.min-1, 47,124 rad.min-1)- Weight on rotor
0.5 kg, 5 kg
(1.1 lb, 11 lb)
Description
Turbocharger Rotor Balancing Machines
1.Widely used in balancing turbocharger, turbocharger impellers,turbocharger compressors ,turbocharger turbines etc .
2.Auto-positioning bed,17inch LCD screen,large tool carriage structure
3.Dedicated soft bearing bracket,driven by Nylon belt ,with higher precision
Turbocharger Rotor Balancing Machines
Technical data at a glance PRZY-0.5
Max Mass of Workpiece (kg) 0.5
Max Diameter of Workpiece (Outside/Inside Bracket)(mm) Φ60/150
Distance between Two Support Bearings (mm) 35~120
Journal Diameter Scope of Workpiece (mm) Φ5~30
Diameter Scope of Driving Belt (mm) Φ5~30
Rotational Speed when the Diameter of Driving Belt is100mm(r/min) 14701)
Motor Power (kw) 0.1DC
Min Achievable Residual Unbalance Amount (emar) ≤0.1g· mm/kg
1)Stepless speed regulation
