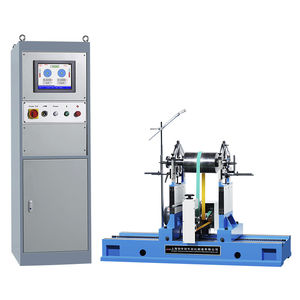

Horizontal balancing machine PHQ-5
hard bearingfor rotorsfor fans

horizontal balancing machine
horizontal balancing machine
Add to favorites
Compare this product


Characteristics

Orientation
horizontal
Type
hard bearing
Applications
for rotors, for fans, for electric motor rotors, for crankshafts, for turbocharger
Other characteristics
high-accuracy, modular, compact, two-plane, universal
Rotational speed

Max.: 1,470 rpm
(9,236 rad.min-1)

Weight on rotor

Max.: 5 kg
(11 lb)

Description

Belt Drive Balancing Machines 1.Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving offers higher precision and easier operation 5.Advanced electrical measuring system and friendly man-machine interface 6.Modular design offers a wide range of application 7.PHQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc Technical data at a glance - PHQ-1.6/5 Max Mass of Workpiece(kg) - 1.6/5 Max Diameter of Workpiece (mm) - Φ300 Distance Between Two Support Bearings (mm) - 15~500 Journal Diameter Scope of Workpiece (mm) - Φ 3~40(120°) Diameter Scope of Driving Belt (mm) - Φ20~85 Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) - ~14701) Motor Power (kw) - 0.2DC Min Achievable Residual Unbalance Amount (emar) - ≤0.15g· mm/kg 1) Stepless speed regulation
