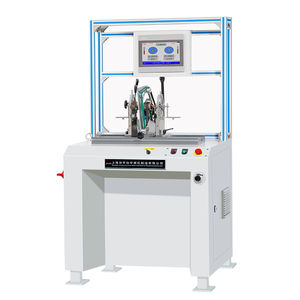

Horizontal balancing machine PHQ-50

dynamicbelt-drivenfor blowers

Belt Drive Balancing Machines 1.Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving offers higher precision and easier operation 5.Advanced electrical measuring system and friendly man-machine interface 6.Modular design offers a wide range of application 7.PHQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc Technical data at a glance - PHQ-50 Max Mass of Workpiece(kg) - 50 Max Diameter of Workpiece (mm) - Φ700 Distance Between Two Support Bearings (mm) - 80~700 Journal Diameter Scope of Workpiece (mm) - Φ 8~753) Diameter Scope of Driving Belt (mm) - Φ18~200 Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) - 700,10501) Motor Power (kw) - 0.752) Length of Bed (mm) - Min Achievable Residual Unbalance Amount (emar) - ≤0.15g· mm/kg 1) Stepless speed regulation 2) Frequency conversion 3) Can add to 75-180 4) Can add to 120-240
