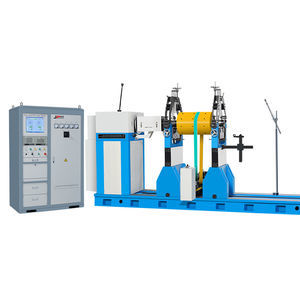

Horizontal balancing machine PHS-15000H

for rotorsfor fansfor electric motor rotors

Horizontal Balancing Machine Belt and End Joint Drive 1. Special designed brackets can effectively transmit mechanical force 2. The durable and reliable sensor possesses high sensitivity 3. The permanent calibration brings high accuracy 4. Driven by universal couplingtransmit the power steadily 5. Applicable to rotors which can't be driven by belt or need large power 6. Advanced electrical measuring system and friendly man-machine interface 7.PHS series are applicable for blower large-sized motor pump centrifuge rubber roller drying cylinder internal-combustion engine etc Technical data at a glance - PHS-15000H Mass Scope of Workpiece(kg) - 15000 Max Diameter of Workpiece(mm) - Φ2800 Distance Between Two Support Bearings(mm) - Min 450 Journal Diameter Scope of Workpiece(mm) - Φ60~400 Max Distance between Driving Flange and Right Bearing Support (mm) - 4200 Rotational Speed of the Main Axis(r/min) - 138,237,396, 644,10004) Motor Power (kw) - 301) Torque of Universal Joint Shaft(N·m) - 2250 Length of Bed (mm) - 6000 Min Achievable Residual Unbalance Amount(emar) - ≤0.5g· mm/kg 1)Frequency conversion 2)Can add to 75-180 3)Can add to 120~240 4)Stepless speed regulation
