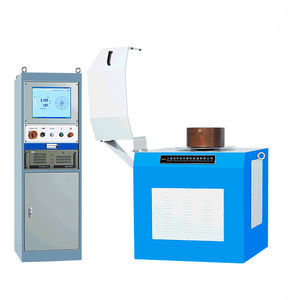

Vertical balancing machine PHLD series

dynamicmanualfor fans

Vertical Balancing Machines 1.Specially designedsolid brackets can effectively transmit mechanical force 2.Durable and reliable sensor possesses high sensitivity and good linearity 3.Permanent calibration brings high accuracy 4.Special clamp offers higher accuracy and easier operation 5.Advanced electrical measuring system and friendly man-machine interface 6.As the customer's requestthe de-weighting system can be equiped 7.PHLD series are applicable for clutch pressure plate brake disc brake drum pulley fan saw blade grinding wheel chuck flange etc Technical data at a glance - PHLD-42H - PHLD-65H Max Mass of Workpiece (kg) - 42 - 65 Max Diameter of Workpiece (mm) - 5101) 8002) 5101) 8002) Height of workpiece(mm) - 160 - 160 Spindle speed(r/min) - 800 - 700 Motor power(kw) - 1.53) - 2.23) Min Achievable Residual Unbalance Amount (emar) - 1g · mm/kg - 1g · mm/kg 1) With hood 2) Without hood 3) Frequency conversion 4) Stepless speed regulation 5) DC Brushless 6) Servo Motor
