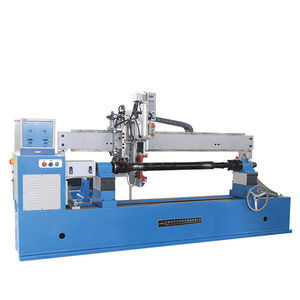

Horizontal balancing machine PHCF series

hard bearingfor shaftsfor propeller shafts

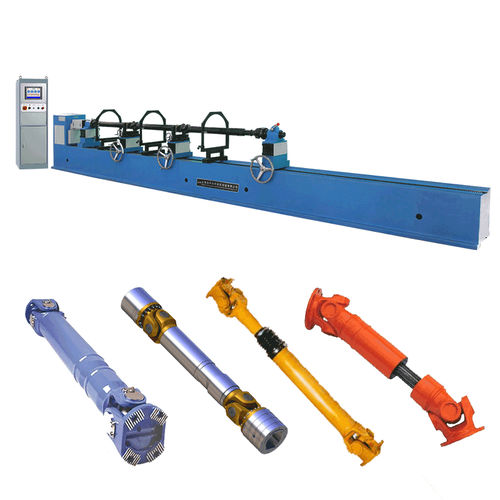

Three Piece Drive Shaft Balancing Machines 1.Specially designed brackets transmit mechanical force with high rigidity 2.Durable and reliable sensor possesses high sensitivity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Advanced electrical measuring system and friendly man-machine interface 5.PHC Series drive shaft balancing machine is the special equipment used to check all kinds of drive shaft balance Technical data at a glance - PHCF-100 - PHCF-350 Max Mass of Workpiece (kg) - 100 - 350 Effective length of workpiece(mm) - 4000 - 4000 Max Diameter of Workpiece(mm) - Φ130 - Φ130 Shaft tube diameter of workpiece(mm) - Ø120 - Ø120 Balancing speed(mm) - 32001) - 32001) Motor Power(KW) - 2.22) - 2.22) Universal joint torque(N.M) - 60 - 60 Min Achievable Residual Unbalance Amount(e mar ) - ≤2.5g - ≤2.5g Length of bed (mm) - 7000 - 7000 Once reduced rate (%) - ≥90 - ≥90 1)Stepless speed regulation 2)Frequency conversion
