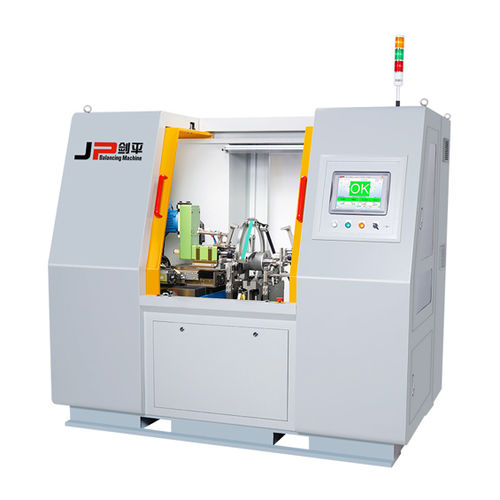

Horizontal balancing machine

dynamicservo-electricbelt-driven

This machine is suitable for motor rotor dynamic unbalance test and automatic drilling, which is composed of machine tool main part, unbalance measuring unit, automatic drilling unit, chip suction unit, etc. Hard-bearing balancing machine, high safety, high efficiency. Belt drive structure, high measurement accuracy, easy to operate. Unbalance measurement and drilling correction are fully automatic. HMI, industrial touch screen, clear and intuitive interface, powerful. Display language are available in Chinese and English, the measurement value display is a combination of digital and vector graphics. Unbalance measurement and drilling data can be exported. Support connecting production lines for automated production. he dynamic unbalance measuring unit adopts soft-bearing brackets. This brackets have higher measurement accuracy and strong anti-interference ability. Sensor Measuring sensor: Using Shanghai Jianping's self-developed acceleration sensor; Through-beam sensor: It senses the presence or absence of the workpiece in the station. If the workpiece is not sensed, the equipment cannot perform the next operation; Speed sensor: The laser sensor is used to sense the depth change of the characteristic point to measure the speed; Drive unit Dynamic balancing drive unit adopts servo motor to drive workpiece rotation through belt; The cylinder controls the pressing down and lifting of the drive part; The design adopts the large angle-wrapping mode, the unbalanced angle positioning accuracy is higher;
