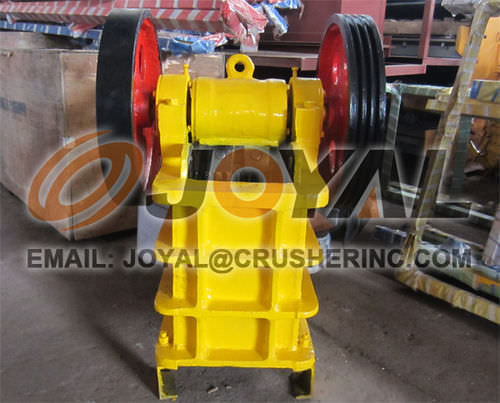

Jaw crusher PEX150×250

stationary

Model: PEX150×250 Feed Opening Size(mm): 150×250 Max. Feeding Size(mm): 125 Adjustable Range of Output Size(mm): 10-40 Capacity(t/h): 1-3 Motor Power(kw): 5.5 Weight(t): 0.85 Overall Dimension(mm): 896×745×935 The JOYAL Jaw Crusher PEX150×250 is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher PEX150×250 is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa. Features 1. Simple structure, easy maintenance; 2. High crushing ratio, even output granularity; 3. High reliability, low investment; 4. Low noise, less dust. Working Principle The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring , then the end products come out from the crushing cavity.
