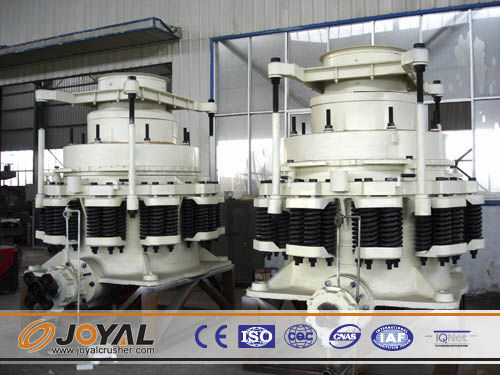

Spring cone crusher PYB900

stationary

The JOYAL Spring Cone Crusher PYB900 is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. The Cone Crusher PYB900 can crush materials with Mohs scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing. Features 1. High capacity and superior quality; 2. Long working life of quick-wear parts, and low investment; 3. Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time. Working Principle When the spring cone crusher PYB900 is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber. Model: PYB900 Max. Feeding Sizes(mm): 115 Adjustable Range of Output Size(mm): 15-50 Capacity(t/h): 50-90 Motor Power(kw): 55 Weight(t): 11.2 Overall Dimension(mm): 2692×1640×2350
