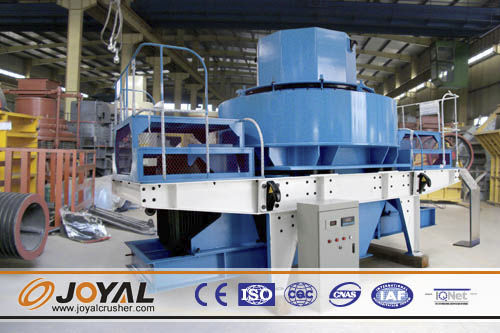

Vertical-shaft impact crusher VSI-8518

stationarysand production

The JOYAL VSI Crusher VSI-8518 is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The JOYAL VSI Crusher VSI-8518 (sand making machine) is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and its also widely used in sand making and stone reshaping industry. Features 1. the oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine. 2. Hydraulic lifting system to check and replace the spare parts, thus its very easy and simple to maintain. 3. the bearing is of SKF and TIMKEN brand to ensure the normal working of the machine. 4. unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine. 5. Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped. 6. Unique dustproof seal system to prevent the dust getting into the spare parts. Model: VSI-8518 Capacity (t/h)/Center and Sides Feeding: 200-260 Capacity (t/h)/Center Feeding: 100-130 Max. Feeding Size(mm)/Soft Material: 40 Max. Feeding Size(mm)/Hard Material: 35 Rotation Speed(rpm) : 1520-1690 Double Motor Power (kw) : 180 Overall Dimension L×W×H (mm) : 4140×2280×2425 Weight (t): 10.3 Vibrating Sensor: Inspection Range: 0.1-20mm/s Continual Adjustment Hydraulic Oil Pump/Motor Power of Double Oil Pump(Kw) : 2×0.31kw Hydraulic Oil Pump/Overall Dimension L×W×H (mm): 820×520×1270 Hydraulic Oil Pump/Power of Oil Tank Heater: 2KW
