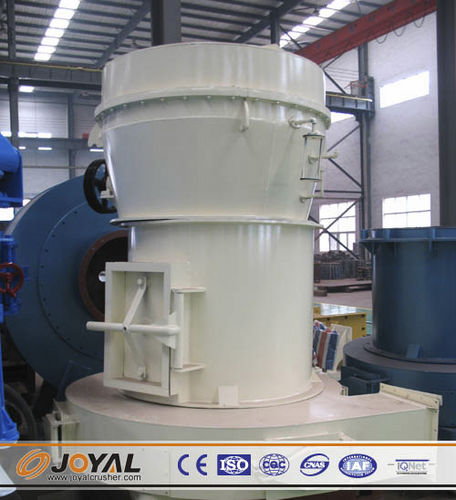

Raymond mill 4R3216

verticalstonefor the chemical industry

Raymond mill 4R3216 is a traditional mill type, which is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with hardness less than 7 in Mohs scale and humidity less than 6 percent, such as: limestone, calcite, barite, dolomite, marble, talcum, gypsum, kaoline, iron ore, glass, fireproof materials, heat preservation materials, chemical materials and so on( about 300 kinds of material). The granularity of the end products can be adjusted from 30 to 325 meshes. Features 1. The equipment's structure is tight, from crushing to grinding and packing all together forms an independent production system, it has advantages of covering small area, operating simple, saving work force. 2. The final product has high passing screen ratio, which can achieve 99%. 3. Driving system of main frame adopts airtight gearing and pulley, which secures reliable operation. 4. Main parts of the grinding plant are made from cast and high quality steel, which ensures the durability of whole plant. 5. With application of centralized controlling electric control system, no operator is in the operating room. Model: 4R3216 Grinding Roller/Numbers(pcs): 4 Grinding Roller/Diameter(mm): 320 Grinding Roller/Height(mm): 160 Grinding Ring/Outside Diameter(mm): 1073 Grinding Ring/Height(mm): 160 Feeding Size(mm): <25 Output Size(mm): 0.613-0.044 Capacity(t/h): 1.0-5.2 Motor Power(kw): 72.5 Overall Dimension(mm): 7700×7200×8800
