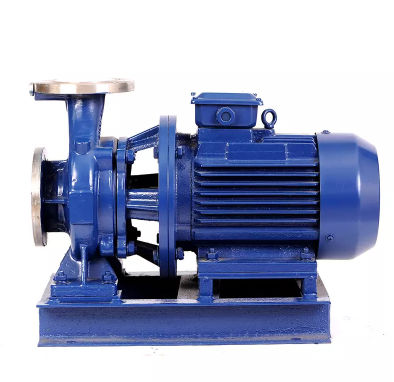

Centrifugal pump 50-32-250watermotor-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- motor-driven
- Mobility
- stationary
- Domain
- industrial, agriculture
- Applications
- irrigation, drainage, outlet, suction
- Other characteristics
- suction, axial
- Flow
Max.: 50 m³/h
(1,765.73334 ft³/h)Min.: 6.3 m³/h
(222.4824 ft³/h)- Power
Max.: 22 kW
(29.91 hp)Min.: 0.55 kW
(0.75 hp)
Description
IS IH Single Stage Single Suction Centrifugal Electric Motor Driven Pump with Many Applications
IS/IH Single Stage Single Suction Centrifugal Electric Motor Driven Pump with Many Applications is designed to suction function in axial direction. The pump has the feature of corrosion resistance .Single stage centrifugal pump IS,IH series are suitable for industrial, city water supply and drainage and agriculture irrigation applications. They are used with delivering clean water or similar liquid. The medium temperature should not be more than 80 °C.
Model Meaning
IS/IH Single Stage Single Suction Centrifugal Electric Motor Driven Pump with Many Applications Type: IS/IH 50-32-125
IS IH— pump mark of single stage, single suction , water application and centrifugal principle
50— pump mark of inlet diameter
32— pump mark of outlet diameter
125— pump mark of nominal impeller diameter
