Impeller pump
waterdiesel engineself-priming

Impeller pump - Shanghai Kaiyuan Pump Industrial Co., Ltd. - water / diesel engine / self-priming
Impeller pump - Shanghai Kaiyuan Pump Industrial Co., Ltd. - water / diesel engine / self-priming
Add to favorites
Compare this product


Characteristics

Technology
impeller
Fluid
water
Operation
diesel engine
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Applications
discharge, work, sewage, recirculation, container
Other characteristics
large, mobile, combined, axial-flow
Flow

Min.: 50 l/s
(13.2086 us gal/s)

Max.: 70 l/s
(18.49204 us gal/s)

Head

Min.: 5 m
(16'04" )

Max.: 70 m
(229'07" )

Fluid temperature

Min.: -25 °C
(-13 °F)

Max.: 55 °C
(131 °F)

Description

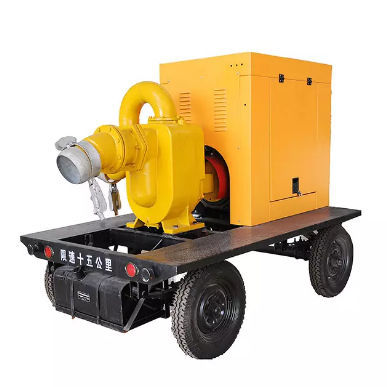

KYBC movable diesel engine driven self-priming pump Product Overview KYBC stationary diesel engine driven self-priming pump is a pump with a novel structure developed on the base of similar technology abroad. The perfect combination of diesel engine and self-priming pump, together with four-wheel mobile trailer and outdoor shelter makes field operation possible, beyond the restriction of climate. The operation can be controlled both manually and automatically. Combined self-priming with non-clogging sewage, possessing the structure of axial-flow outer recirculation, the uniquely-designed pump body and impeller channel,diesel engine driven self-priming pump can absorb and discharge liquid with large particles and continuous fiber impurities,just as self-priming fresh water pump,without using bottom valve and pump container for water diversion. This pump is therefore can be widely used in municipal sewage discharge system as well as flood-fighting and emergency rescues. KYBC movable diesel engine driven self-priming pump is your best choice among all kinds of diesel engine driven self-priming pumps. Compared with domestic pumps of the same category, diesel engine driven self-priming pump is simpler in its structure, more better at self-priming work and more thoroughly in sewage charging. With its quality indexes taking the leading level in China, it has a good market appeal and promising future.
