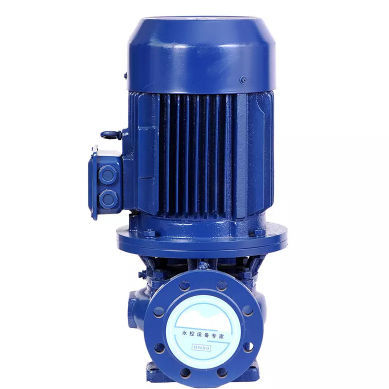

Centrifugal pump KYL

wateroilelectric

ExplosiExplosive-Proof Chemical Pump Vertical Pipeline Oil Pump Centrifugal Pumps ve-Proof Chemical Pump Vertical Pipeline Oil Pump Centrifugal Pumps OVERVIEW: KYL single-stage single-suction vertical-type high capacity centrifugal pump series are produced strictly according to the relevant requirements, so they have a stable quality and reliable performance and are the brand-new ones instead of model IS horizontal pump, model DL pump etc. ordinary pump. They are divided into basic type, flow-expansion type, A, B, C cutting type etc. In more than 250 specifications and with a flow range of 1.5-1200m3/h and a head range of 8-150m. And, per the different fluid media and temperatures, model KYLR hot-water pump, model KYLH Chemical pump, model YG oil pump and model KYBG horizontal anti-explosion chemical pump etc. series products are designed and manufactured and have the same performance parameters. FEATURES: 1. Compact structure. These series pumps have an integrally vertical structure, beautiful appearance and less area of occupied land, which, comparing with the ordinary ones, is reduced by 30%. 2. Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use
