Centrifugal pump waterdiesel enginestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- diesel engine
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- spray, spraying
- Other characteristics
- mechanical
- Flow
Min.: 18 m³/h
(635.664 ft³/h)Max.: 2,000 m³/h
(70,629.33344 ft³/h)- Pressure
Min.: 0.3 MPa
Max.: 2 MPa
- Head
Min.: 20 m
(65'07" )Max.: 500 m
(1640'05" )- Power
Min.: 20 kW
(27.19 hp)Max.: 450 kW
(611.83 hp)- Fluid temperature
80 °C
(176 °F)
Description

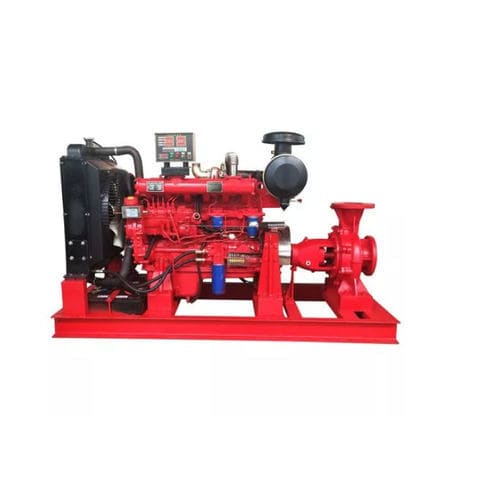

Diesel engine centrifugal pumps are a common type of pumps used in various industrial and agricultural applications. They are powered by a diesel engine, which provides the necessary rotational force to drive the pump. The pump consists of several components, including an impeller, a shaft, and a casing.
The diesel engine functions as the primary power source for the pump. It converts chemical energy into mechanical energy, which is then transferred to the pump via a shaft. The shaft is connected to the impeller, located at the end of the shaft, and its blades are designed to force the liquid to move away from the center of the pump.
Applications
XBD is mainly used for fire-fighting systems in industries and civil buildings(fire plug distinguisher, auto spray system, and water spraying system). Besides, it also can be used as water supply for domestic water systems in buildings, cities, mines, boilers etc..
